describe

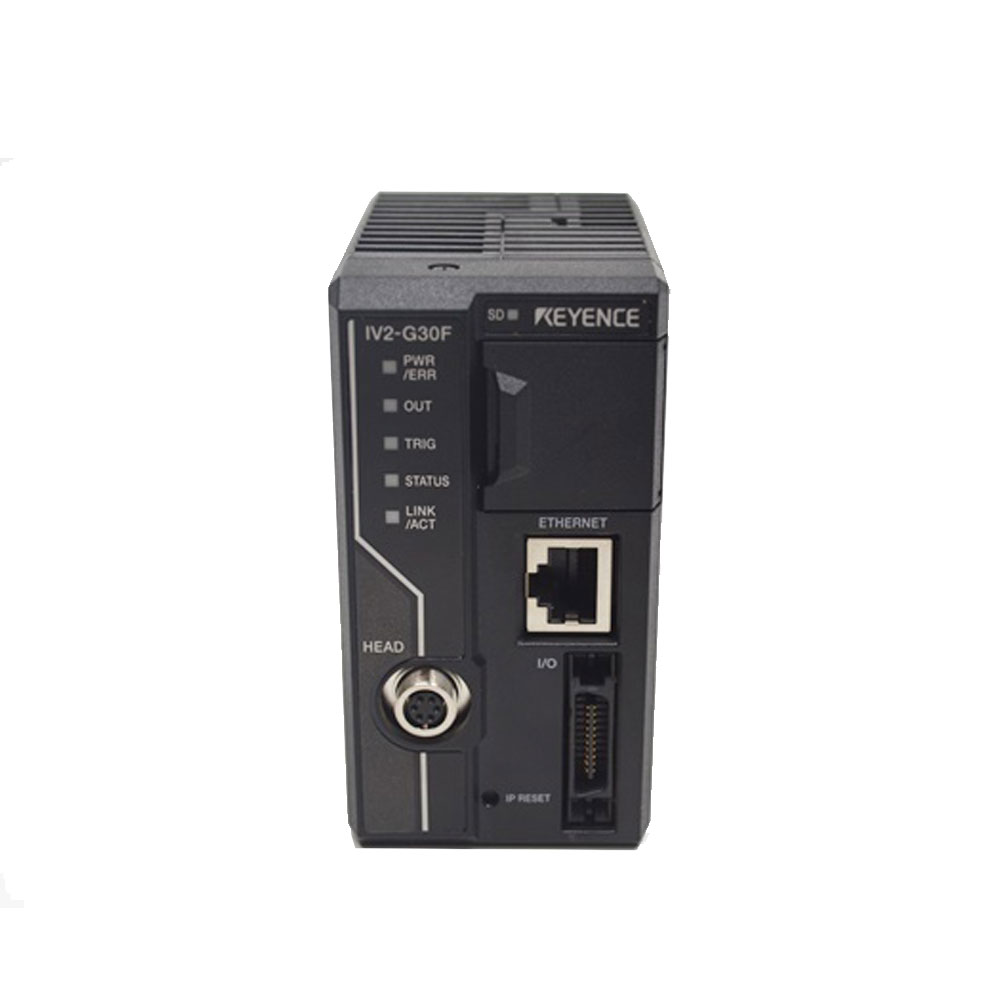

| Model | IV2-G30F | |||
| Type | Learning/standard type | |||
| Tools | Available modes | Learning mode / Standard mode | ||
| Standard mode built-in tools | Outline, Colour area*1, Area*2, Edge pixels, Colour average*1, Brightness average*2, Width, Diameter, Edge presence, Pitch, OCR, Colour/brightness prohibit, Position adjustment, High-speed position adjustment (1-axis edge/2-axis edge) | |||
| Number of tools | Detection tools: 16 tools, position adjustment tool: 1 tool*3 | |||
| Switch settings (programs) | 128 programs (when using SD card) / 32 programs (when not using SD card) | |||
| Indicators | PWR/ERR, OUT, TRIG, STATUS, LINK/ACT, SD | |||
| Image history | Number of storable images | 1000 images *4 | ||
| Save conditions | Selectable between NG only, NG and OK near threshold*5, and All*4 | |||
| Image data transfer | Transfer destination | Selectable between SD card and FTP server | ||
| Transfer format | Selectable between bmp, jpeg, iv2p, and txt | |||
| Transfer conditions | Selectable between NG only, NG and OK near threshold*5, and All | |||
| Analysis information | RUN display | Tools list (Judgement results, degree of similarity, or degree of similarity bar display)*6 | ||
| RUN information | Switchable between OFF, histogram, processing time, count, and output monitor Histograms: Histogram, degree of similarity (Max., Min., Ave.), Number of OKs, Number of NGs Processing time: Processing time (latest, Max., Min., Ave.), Image capture interval (latest, Max., Min., Ave.) Count: Trigger numbers, Number of OKs, Number of NGs, Trigger errors, Strobe errors Output monitor: ON/OFF status by output *6 | |||
| Other functions | Image capture function | Image buffer, Image capture range, Digital zoom (2×, 4×), HDR, High gain, Colour filter*1, White balance*1, Brightness correction | ||
| Tool functions | Learning mode: Additional learning Standard mode: Mask outline, Masking function, Colour extraction/exclusion*1, Colour histogram function*1,Monochrome histogram function*2, Scaling function | |||
| Utilities | Failing sensor list, Failure hold, Test run, I/O monitor, Security settings, Simulator*7 | |||
| Input | Type | Switchable between non-voltage input and voltage input For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit) For voltage input: Maximum input rating 26.4 V, ON voltage 18 V or higher, OFF current 0.2 mA or lower, ON current 2 mA (for 24 V) | ||
| Number of inputs | 8 (IN1 to IN8) | |||
| Function | IN1: External trigger, IN2 to IN8: Enable by assigning optional functions Assignable functions: Program switching, Clear error, External master image registration, SD card save cancel | |||
| Output | Type | Open collector output; NPN/PNP switchable, N.O./N.C. switchable For open collector NPN output: Maximum rating of 26.4 V, 50 mA, residual voltage of 1.5 V or less For open collector PNP output: Maximum rating of 26.4 V, 50 mA, residual voltage of 2 V or less | ||
| Number of outputs | 8 (OUT1 to OUT8) | |||
| Function | Enable by assigning optional functions Assignable functions: Total judgement (OK/NG), Run, Busy, Ready, Strobe, Position adjustment result, Judgement result of each tool, Result of the logical operation of each tool, Error, SD card error | |||
| Ethernet | Standard | 100BASE-TX/10BASE-T | ||
| Connector | RJ45 8-pin connector | |||
| Network function | FTP client, SNTP client | |||
| Interface compatibility | Built-in Ethernet | EtherNet/IP™, PROFINET, TCP/IP non-procedure communication | ||
| Communication unit | EtherCATⓇ, CC-Link, DeviceNetⓇ, PROFIBUS, RS-232C*8 | |||
| Expanded memory | SD card (SD/SDHC)*9 | |||
| Rating | Power voltage | 24 VDC ±10% (including ripple) | ||
| Current consumption | 1.8 A or less (including communication unit and output load) | |||
| Environmental resistance | Ambient temperature | 0 to +50°C (No freezing) | ||
| Relative humidity | 35 to 85% RH (No condensation) | |||
| Material | Main unit case: PC, Power connector: PA/POM, I/O connector: PA, Sensor head connector: Zinc + Ni plating/PA, Ethernet connector: Copper alloy + Ni plating, Main unit rear heat sink: Aluminium, Main unit rear DIN rail fixing tab: POM, Nameplate: PC | |||
| Weight | Approx. 330 g | |||
