describe

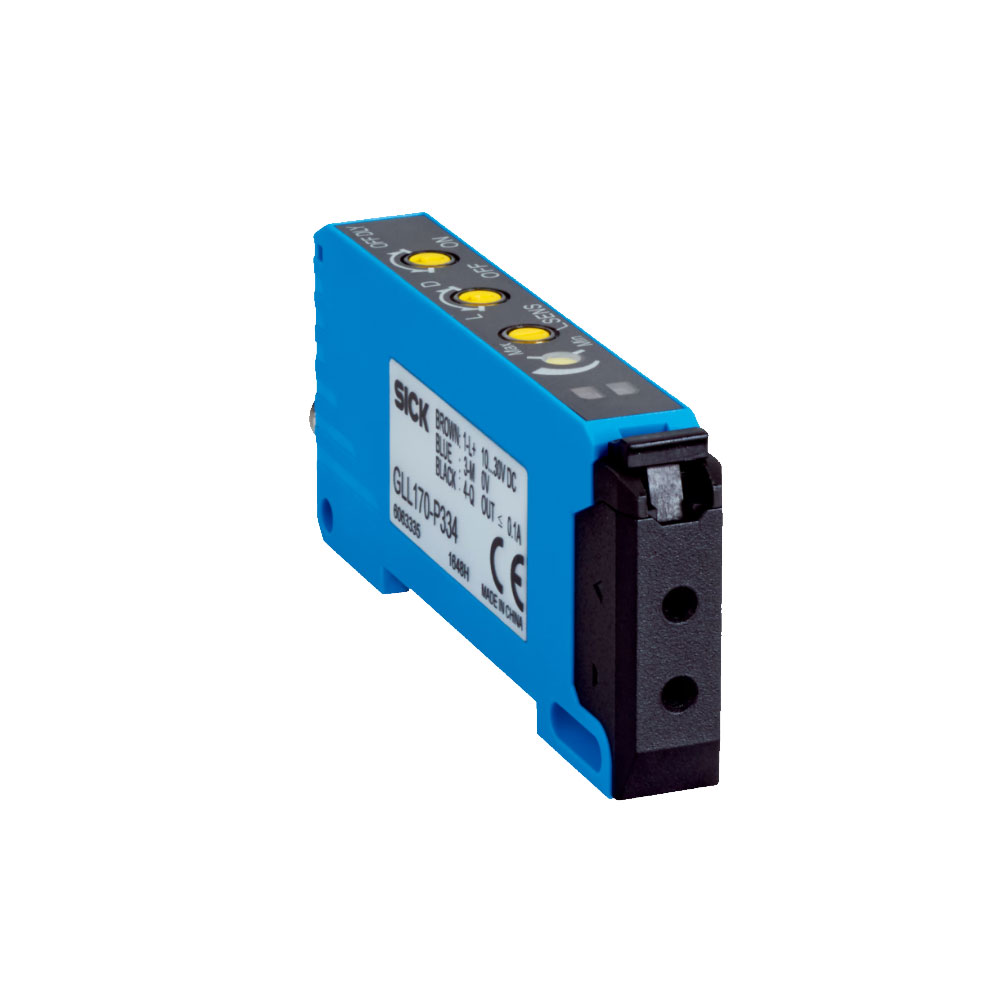

| Device type | Fiber-optic amplifier |
| Device type detail | Stand-alone |
| Dimensions (W x H x D) | 10 mm x 31.7 mm x 72.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 mm … 190 mm (Proximity system) 1) 2) 0 mm … 800 mm (Through-beam system) 3) |
| Sensing range | 0 mm … 160 mm, Proximity system 1) 2) 0 mm … 700 mm, Through-beam system 3) |
| Type of light | Visible red light |
| Light source | LED 4) |
| Wave length | 632 nm |
| Adjustment | Potentiometer, 8 turns 5) |
| Indication | LED |
| Display | Status LEDs |
