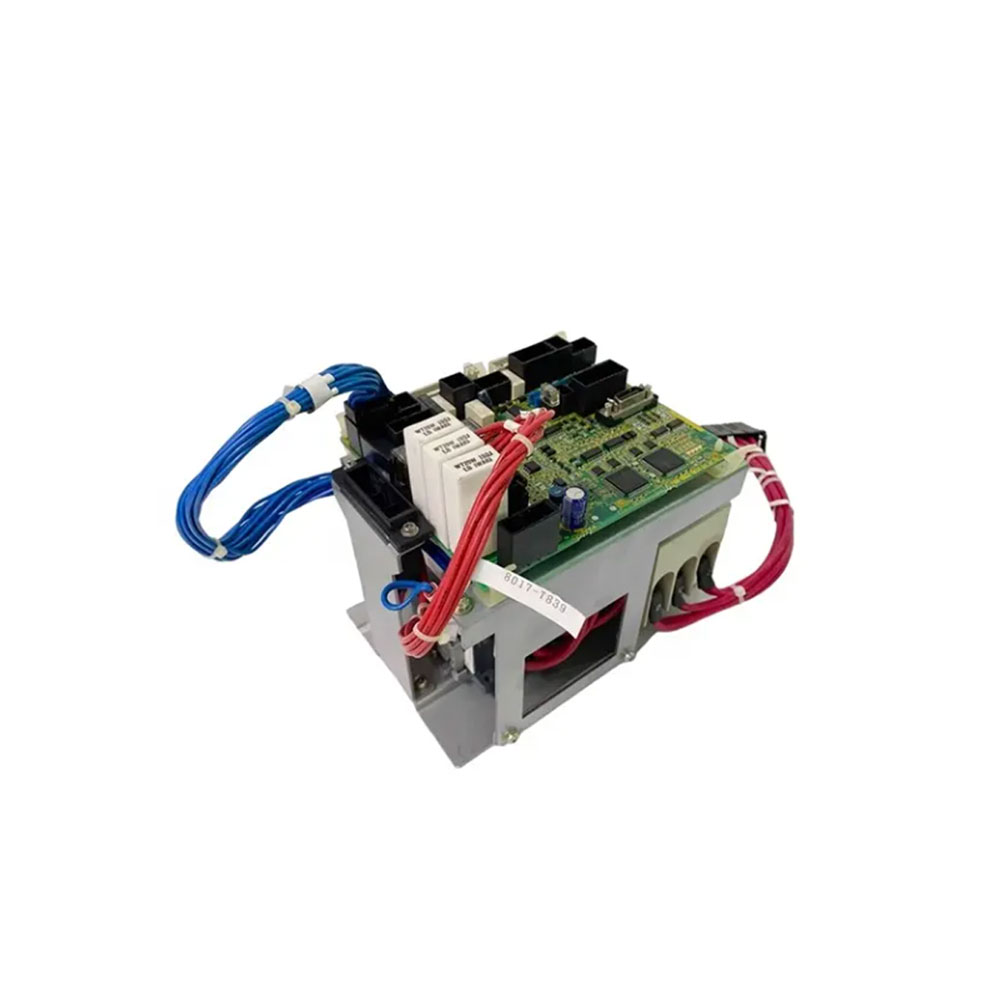

A05B-2601-C412

Servo Amplifier Module

1. Module Type:
   • Servo Amplifier Module (commonly used in Fanuc CNC systems or robotics).
   • Designed for motor control (e.g., spindle or axis servo drives).
2. Electrical Specifications:
   • Input Voltage:
     • 3-phase AC 200-240V (typical for industrial servo drives).
   • Output Power:
     • ~3-5 kW (estimated based on similar A05B modules).
   • Current Rating:
     • Continuous: 10-20A (dependent on load conditions).
   • Communication Interface:
     • High-speed serial link (e.g., Fanuc I/O Link, FSSB).
3. Physical Specifications:
   • Dimensions:
     • Approx. 300mm (W) × 150mm (H) × 100mm (D) (varies by cooling design).
   • Weight: ~3-5 kg.
   • Cooling Method:
     • Forced air cooling or heat sink (model-dependent).
4. Performance:
   • Control Resolution:
     • Sub-micron precision (for CNC axis positioning).
   • Operating Temperature:
     • 0°C to +55°C (with derating above 40°C).
   • Protection Features:
     • Overcurrent, overvoltage, and overtemperature protection.
5. Compatibility:
   • Fanuc System Integration:
     • Compatible with Fanuc CNC controllers (e.g., Series 30i/31i/32i).
   • Motor Compatibility:
     • Matches Fanuc αi/βi-series servo/spindle motors.
6. Certifications:
   • CE, UL, and ISO 13849-1 (functional safety).
7. Application:
   • CNC machine tools, industrial robots, and high-precision motion control systems.
